Microsoft Dynamics AX 2012 Manufacturing – Lean Ninja IoT Scenario Part 4: Functionality/Make to Order

Microsoft Dynamics AX 2012 Manufacturing – Lean Ninja IoT Scenario Part 4-2: Functionality/Make to Order


Section: Creation

We'll begin with replenishment of Near Side Line location (BULK-002) from Warehouse bulk location (BULK-001). First we'll introduce a necessary on-hand in BULK-000 location as presented below

On-hand


Then we can run Kanban pegging event routine to generate necessary kanban

Kanban pegging event


Infolog


Please note that Manufacturing kanban has been generated to replenish Near Side Line location from Warehouse bulk location

Kanban rule


Kanban


At this point we are missing BOM structure for kanban, so we are going to assign BOM version manually to kanban using Assign alternative BOM version function

Assign alternative BOM version - Before


Assign alternative BOM version - After


Now we'll look at kanban pegging tree

Kanban pegging tree


And also we'll take a look at inventory transactions

Inventory transactions


Please remember that we are using Manufacturing kanban for replenishment of Near Side Line location from Warehouse bulk location. And the next step will be to plan the entire pegging tree to plan kanban Process job, generate Kanban picking wave and Warehouse work

Plan entire pegging tree


Kanban pegging tree – Kanban jobs



Please note that Kanban Process job changes its status to Planned now

Inventory transactions


At this point we can also review Kanban wave

Kanban wave


and generated Warehouse work

Work


Please note that wave would not be created and items would be picked if I had on-hand in BULK-001 for Wheel2

Now Warehouse worker will use hand-held device to execute Warehouse work

Login


Menu - Inventory


Menu – Inventory – Kanban picking


Kanban picking


Kanban picking


Kanban picking


Kanban picking


Kanban picking


Kanban picking work is now completed and we can take a look at inventory transactions

Inventory transactions


In a meantime we can also see Process kanban job planned on Schedule board and visible on Kanban board for Process jobs

Kanban board – Schedule board


Kanban board – Schedule board


Kanban board - Process jobs


Kanban board - Process jobs


Kanban board - Process jobs (Details)


Kanban board - Process jobs (Picking list)


Kanban board - Process jobs


At this point we could complete kanban straight from Kanban board for process jobs, but instead of this we'll do kanban put away in WMS

Menu - Inventory


Kanban put away


Kanban put away


Kanban put away


Kanban put away


Now when kanban put away work is completed we can take a look at inventory transactions

Inventory transactions


Also we can observe completed kanban on Kanban board for Process jobs

Kanban board for Process jobs


After we completed Manufacturing kanban we have replenished Near Side Line location (BULK-002) from Warehouse bulk location (BULK-001). We can see how inventory on-hand was updated for Wheel2

On-hand


Before we proceed to the next step I want to also introduce additional on-hand for Body in the point of consumption, Line Side location (BULK-003)

Inventory journal


Next we'll place a new Sales order for AlexMotorcycle2

Sales order


Please note that AlexMotorcycle2 finished product is expected to be in a Finished good location (BULK-004). After we save Sales order the system based on Kanban rules in place will automatically create necessary kanbans. We can review created kanbans by opening Pegging tree form

Pegging tree (Process kanban)


As you can see according to Kanban rules 2 Kanban jobs will have to be completed to produce AlexMotorcycle2, one for Transfer and another one for Process

Kanban (Process)


Pegging tree (Transfer kanban)


Kanban (Transfer)


This is how inventory transactions look like at this point

Inventory transactions (Wheel2)


Inventory transactions (Body2)


Inventory transactions (AlexMotorcycle2)


Now I'll plan the entire pegging tree

Plan pegging tree


Please note that Kanban Process job has been Planned, and no Kanban picking wave was generated

Pegging tree – Kanban jobs


In a meantime we can review Transfer and Process jobs on Kanban board for Transfer jobs and Kanban board for Process jobs correspondingly

Kanban board for Transfer jobs


Kanban board for Transfer jobs

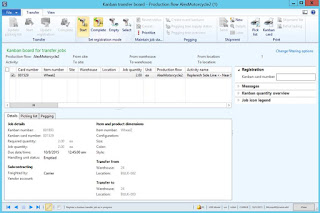

Kanban board for Transfer jobs - Details


Kanban board for Transfer jobs – Picking list


Kanban board for Transfer jobs - Pegging


Kanban schedule board


Kanban board for Process jobs


Kanban board for Process jobs


Kanban board for Process jobs - Details


Kanban board for Process jobs – Picking list


Kanban board for Process jobs - Pegging


You can also review Process job and Transfer job on the same screen as presented below

Kanban board for Process jobs


Now we can begin the execution of kanbans

Section: Execution

We'll begin with Starting Transfer job first

Transfer – Start


In case you want to do partial picking you can use Pick screen as presented below

Pick


Here's how inventory transactions look like after this step

Inventory transactions


Then we'll complete Transfer

Transfer – Complete


In case you want to do partial registration you can use Registration screen as presented below

Registration


Here's how inventory transactions look like after this step

Inventory transactions


As we complete Transfer now we have enough Wheels in its Part location for Workcell worker to execute Assembly process. We'll start Process kanban job now

Process job - Start


In case you want to do partial picking you can use Pick screen as presented below

Pick


Pick


Please note that according to Storage dimension group I had to specify Locations on both lines
And again we'll take a look at inventory transactions

Inventory transactions (Wheel2)


Inventory transactions (Body2)


In case we need to complete partial quantity or specify Good/Error quantities you can use Complete job and error details screen as presented below

Process job – Complete with details


Process job


In case you need to update partial registration you can use Registration screen as presented below

Registration


Now we can take a look at inventory transactions again

Inventory transactions (AlexMotorcycle2)


Inventory transactions (Wheel2)


Inventory transactions (Body2)


Once we completed Manufacturing kanban we can see finished product is available in Finished goods location now

On-hand


And because we have produced the product we can now send it to the customer

Sales order – Packing slip and Invoice


Please note Location is specified on Sales order line per Storage dimension group requirement

After we updated Sales order physically and financially we can review inventory transactions

Inventory transactions (AlexMotorcycle2)


Inventory transactions (Body2)


Inventory transactions (Wheel2)


The very last step will be to run Lean costing routine to cost the production flow

Section: Costing

Cost the production flow


Prompt


Please note that no further registrations of kanban jobs will be possible after the date costing, but that's fine for the sake of this demo

Inventory transactions (AlexMotorcycle2)


Inventory transactions (Body2)


Inventory transactions (Wheel2)



Tags: Microsoft Dynamics AX 2012 R3, Lean Manufacturing, Pull, Kanbans, Kanban rules, Production flow, Warehouse Management, Hand-held devices.

Note: This document is intended for information purposes only, presented as it is with no warranties from the author. This document may be updated with more content to better outline the issues and describe the solutions.

Author: Alex Anikiev, PhD, MCP

Special thanks for collaboration in building this scenario goes to Lean Transformation Guru at MCAConnect, Phil Coy
