Microsoft Dynamics AX 2012 Manufacturing – Project Primer (Part4)

Microsoft Dynamics AX 2012
Manufacturing – Project Primer (Part4)

Purpose: The purpose of this document is to illustrate project manufacturing approach in Microsoft Dynamics AX 2012 on simplified example of process manufacturing of car tires. This document will focus on project batch order with Posting method = Consumed, and it will outline end-to-end functional flow for the scenario which includes setup (Section A), creation (Section B), estimation (Section C), scheduling (Section D), execution (Section E) and costing (Section F) aspects. Please note that project batch orders functionality is not provided in standard Microsoft Dynamics AX 2012 and in order to enable project batch orders functionality I needed to do custom development. Please review other documents in the series to compare process manufacturing approach to other manufacturing approaches in Microsoft Dynamics AX 2012.

Challenge: Microsoft Dynamics AX 2012 out-of-the-box enables mixed mode manufacturing including traditional approach and other approaches including project manufacturing. Project manufacturing functionality in Microsoft Dynamics AX 2012 allows you to create project production orders, track production costs and invoice the customer for incurred production costs. Please note that for process manufacturers or mixed-mode manufacturers being able to use project batch orders makes a lot of sense. Project batch orders can also help with scenarios like disassembly and inverse BOMs (multiple outcomes from the production process represented as co-products) which are applicable for discrete manufacturers. Process manufacturing in Microsoft Dynamics AX 2012 has introduced number of new concepts such as formulas, co-products, by-products, etc. Please note that project batch orders functionality is not provided in standard Microsoft Dynamics AX 2012 and in order to enable project batch orders functionality I needed to do custom development. When traditional manufacturing approach is applied to production process itself, the challenge is to understand interrelations between production control and project accounting modules in Microsoft Dynamics AX 2012. The idea is that the reader with understanding of traditional manufacturing approach will be able to apply and "extend" this knowledge in order to implement project manufacturing scenarios in Microsoft Dynamics AX 2012.

Solution: The simple but at the same time descriptive real-world example of Car tires manufacturing provides context for better understanding of manufacturing processes and their implementation in Microsoft Dynamics AX. In particular we will be dealing with single level formula, co-product and by-product, as well as straightforward sequential route in order to implement Make to Stock scenario. Make to Stock scenario was implemented for the sake of simplicity, however we can also apply this knowledge to implement Make to Order scenario if needed.

Scenario

In this scenario Car tire will be manufactured using process approach. Car tire ingredients will be put together in order to manufacture finished product. One team will be responsible for Car tire manufacturing.

Formula
Route
<![if !vml]><![endif]>
<![if !vml]><![endif]>

One of the important requirements defined in this scenario is that all products are Standard cost controlled

Section A: Setup


Let's review the setup which is required to implement this scenario

Number of released products will be created in Microsoft Dynamics AX 2012 which will have similar characteristics for the sake of simplicity. All of them will be Standard cost controlled, Site and Warehouse will be used as Storage dimensions, default Site and Warehouse settings will be defined for released products and finally cost price will also be defined for all released products (not using Formula calculation for Formulas). Please note that in process industries we deal with Batch controlled products however for the sake of simplicity I didn't introduce Batch as Tracking dimension in this scenario.

For Car tire (AlexTire) manufacturing we will need the following ingredients: Rubber, Carbon and Zink oxide. Please note that as the result of Car tire (AlexTire) manufacturing we will also have Co-Slag co-product and By-Slag by-product.

Released product: Tire (AlexTire)

Car tire (AlexTire) released product will be created using decentralized approach


Cost price for Car tire (AlexTire) is 75$

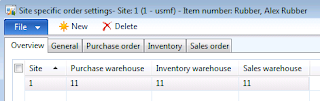

Site "1" will be used as default Site for Purchase, Inventory and Sales


Within Site "1" Warehouse "11" will be used as default Warehouse for Purchase, Inventory and Sales


Car tire (AlexTire) will be manufactured that's why Production type = "Formula"


Released product: Rubber

Rubber released product will be created using decentralized approach


Cost price for Rubber is 3$/Lbs


Site "1" will be used as default Site for Purchase, Inventory and Sales


Within Site "1" Warehouse "11" will be used as default Warehouse for Purchase, Inventory and Sales


Released product: Carbon

Carbon released product will be created using decentralized approach


Cost price for Carbon is 4$/Lbs


Site "1" will be used as default Site for Purchase, Inventory and Sales


Within Site "1" Warehouse "11" will be used as default Warehouse for Purchase, Inventory and Sales


Released product: Zink oxide

Zink oxide released product will be created using decentralized approach


Cost price for Zink oxide is 50$/Lbs


Site "1" will be used as default Site for Purchase, Inventory and Sales


Within Site "1" Warehouse "11" will be used as default Warehouse for Purchase, Inventory and Sales


Released product: Co-Slag

Co-Slag released product will be created using decentralized approach


Cost price for Co-Slag is 1$/Lbs


Site "1" will be used as default Site for Purchase, Inventory and Sales


Within Site "1" Warehouse "11" will be used as default Warehouse for Purchase, Inventory and Sales


Please note that Production type = Co-product for Co-Slag product


Released product: By-Slag

By-Slag released product will be created using decentralized approach


Cost price for By-Slag is 2$/Lbs


Site "1" will be used as default Site for Purchase, Inventory and Sales


Within Site "1" Warehouse "11" will be used as default Warehouse for Purchase, Inventory and Sales


Please note that Production type = By-product for By-Slag product


Released products

When all released products are created you can see them on Released products list page


Please note that Car tire (AlexTire) has Production type = Formula, Co-Slag has Production type = Co-product and By-Slag has Production type = By-product
Car tire (AlexTire) will be manufactured using 3 operations routes. Before we can define routing we will need to define the list of operations in the system

Operations


Car tire (AlexTire) will be manufactured by one team

Resource group: AlexTire

Car tire (AlexTire) will be manufactured by Alex Tire Team 1


Resource: AlexTire1

Alex Tire Team 1 will consists of 1 worker: David Ahs


Please note that Alex tire Team 1 will be responsible for Car tire (AlexTire) manufacturing
From costing perspective the cost prices for different types of labor will be defined through Cost categories

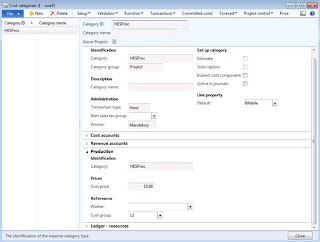

Cost category: Setup

Cost price for Setup labor will be 18$

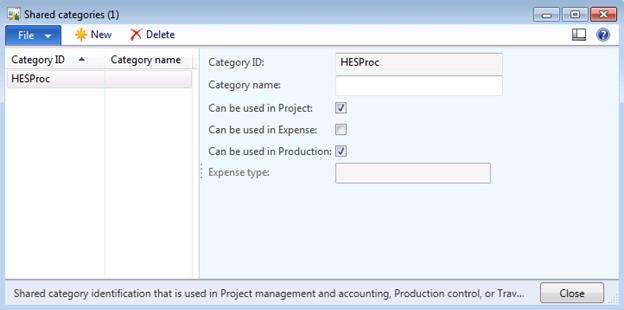

The corresponding Shared category should be enabled for use in Project




Sales price for Setup labor will be 36$




Cost category: Run time

Cost price for Process labor will be 15$




The corresponding Shared category should be enabled for use in Project




Sales price for Setup labor will be 36$




Cost category: Quantity

Cost price per Quantity manufactured will be 2$




The corresponding Shared category should be enabled for use in Project




Sales price for Setup labor will be 36$


Costing sheet

The structure of manufacturing costs will be defined in Costing sheet


Please note that Costing sheet is also used to define and calculate different types of overheads such as material overhead, labor overhead and plant overhead. However you cannot use Project production orders when COGM node exists in Costing sheet. My modification for Project batch orders adheres the same rules, that's why I deleted Costing sheet elements related to COGM
Car tire (AlexTire) formula will consist of Rubber, Carbon and Zink oxide ingredients. Please note that the formula also defines Co-Slag co-product and By-Slag by-product as secondary outcomes from production process.

Formula: AlexTire – Designer view

Designer view provides a visual representation of Car tire (AlexTire) formula


Please note that Co-Slag co-product and By-Slag by-product are listed under Co-products in Designer view

Formula: AlexTire – Lines view

Designer view provides a grid representation of Car tire (AlexTire) formula


Formula: AlexTire – Co-Products

You can define secondary outcomes from production process such as co-products and by-products on Co-products screen. In the case of Car tire (AlexTire) formula they are Co-Slag co-product and By-Slag by-product


Car tire (AlexTire) route will consist of Mixing, Building and Curing operations which will be executed sequentially

Route: AlexTire


Please note that different Cost categories are specified for Setup, Run time and Quantity for all route operations


Please note that Curing operation requires Queue time before (0.25 hours) and Queue time after (0.25 hours) as well as Run time (1 hour)


Please note that Resource requirements are specified for all route operations


Customer

Customer will be defined and linked to project


Project contract

Project contract will be defined and linked to project


Project

Time and material project will be created in order to provide costing context for production process


Please note that time and material project is linked to the customer and project contract defined earlier

Project parameters

In order to track production costs under project via Cost control functionality we need to make sure that it is enabled in Project accounting parameters (Cost control tab > Cost commitments section > Production checkbox)


Please note that I added "Batch order" checkbox in Cost commitments section in Cost control area in Project management and accounting parameters to enable Committed cost functionality for Project batch orders

This is how Project management and accounting parameters form looked like before modification


This is how Project management and accounting parameters form looks like after modification

Section B: Creation


In Make to Stock scenario we will create Batch order for Car tire (AlexTire) manually
Please note that Project batch order option is not available in standard Microsoft Dynamics AX 2012

Project > Manage > New > Item task > Production order


Project > Manage > Related information > Item task > Production order


And in case you try to create Project production order and specify Formula product


You will see the following infolog


That's why I added Project batch order option on Project > Manage > New > Item task


As well as Project > Manage > Related information > Item task > Batch orders


After this modification Create batch order screen will look like this


Batch order: AlexTire

Batch order is a document which in process scenario controls manufacturing process of certain quantity of goods within defined timeframe

Now let's create Project batch order. In Make to Stock scenario we will create Project batch order for Car tire (AlexTire) manually. Batch order is a document which in process scenario controls manufacturing process of certain quantity of goods within defined timeframe




Please note that Costing sheet should not exist in case of Posting method = Consumed, otherwise you will see the following message upon project production order creation


Please note that Standard cost items are not allowed on project production orders




That's why I had to change products to be FIFO controlled

Production orders

When batch order is created you can see it on Production orders list page




Please note that Project fast tab will contain details related to Project such as Project number, etc




When batch order is created the system will copy product's active Formula and active route in order to create production Formula and production route

Batch order: AlexTire – Production Formula

Production Formula is a list of ingredients to be used for this particular Batch order




Please note that you can change Batch Formula to meet specific requirements for particular Batch order without affecting product's active Formula

Batch order: AlexTire – Production Co/By-products

Production Co/By-products represent secondary outcomes from production process




Please note that you can change Batch Co/By products to meet specific requirements for particular Batch order without affecting product's standard Co/By products defined on the formula if you allow for Co-products variations

Batch order: AlexTire – Production cost

You can also define a cost distribution between your formula and co-products as well as burden related to disposal of by-products




Batch order: AlexTire – Production Route

Production Route is a list of operations to be used for this particular Batch order




Please note that you can change Batch Route to meet specific requirements for particular Batch order without affecting product's active Route

At this moment we will have inventory receipt transaction representing batch order receipt for Car tire (AlexTire) as well as auto loss/profit inventory issue transaction representing consumed to the project Car tire (AlexTire)

Inventory transactions



Section C: Estimation


The next step in Car tire (AlexTire) batch order life cycle is to estimate batch order

Batch order: AlexTire – Estimate

It's important to mention that during estimation the system will create inventory issue transactions for Formula ingredients, create inventory receipt transactions for Co/By products, calculate estimated cost of manufactured product and create related Batch orders for manufactured sub-ingredients if needed




Once estimation is finished you can see the list of batch orders on Production orders list page

Production orders




From costing perspective after estimation the system calculated estimated cost of batch order based on production Formula and production route

Batch order: AlexTire – Price calculation




Please note that the system segregates consumption of materials from consumption of labor on Overview estimation tab. Our Costing sheet is empty that's why we don't have Costing sheet details




You can also review Price calculation details for co-products




In this particular example no cost will be allocated to co-product. Please see Appendix A for different examples of cost allocation

After estimation the system created all necessary issue inventory transactions for Formula components for Car tire (AlexTire) and receipt inventory transactions for Co/By products

Inventory transactions




Please note that because we have multiple outcomes from production process the system also creates inventory profit/loss transactions for Co-products (Co-products and By-products) in order to consume these products to project

At this point because of project batch order Posting method = Consumed you can review Project committed costs related to consumed material and labor




Please note that because project batch order Posting method = Consumed we have to account for consumed ingredients and labor as project cost that's why the system creates Committed cost transactions for Formula ingredients as well as Committed cost transactions for Route operations

You can do extended project cost control analysis using Cost control screen

Project – Cost control



Section D: Scheduling


The next step in Car tire (AlexTire) batch order life cycle is to schedule batch order
In this particular scenario I'll execute Job scheduling which will generate number of jobs and provide exact dates and times for them

Batch order: AlexTire – Job Scheduling




Production orders

Once Job scheduling is finished you can see the list of batch orders and their statuses on Production orders list page




Please note that the system scheduled batch order and generated number of jobs based on times defined on route operations

Batch order: AlexTire – Jobs

As the result of Job scheduling based on Batch Route the system generated a number of jobs




Batch order: AlexTire – Gantt chart

Gantt chart provides visual representation of production schedule, ability to reschedule for the user by dragging and dropping bars and much more




Please note that Gantt chart provides 2 views: Order view and Resource view




At this moment no changes happened to inventory transactions, however by the result of scheduling the system did appropriate capacity reservation for resources involved

Inventory transactions




Please see the continuation of this article here: http://ax2012manufacturing.blogspot.com/2013/05/microsoft-dynamics-ax-2012_1106.html
